Smallest size,Max load 180N,150MM/S,hall sensor position feedback

Main Specification


1	Type	OK-LA06 Linear Actuator
2	Input	6/12V DC power
3	Load	Max 180N/18KG/39.6LBS
4	Stroke	Max 150MM/6INCH
5	Speed	Max 150MM/S 6INCH/S
6	Limited switch	Yes,with
7	Duty cycle	10%
8	Tube material	Aluminum alloy or stainless steel
9	Color option	Black
10	Mounting bracket	Options
11	Control system	Options
12	Signal feedback	Hall sensor,forward and reverse signal feedback
13	Max current	12V/0.38A
14	Options	Both push/pull,only push,no pull. Overload,Overheat,Overcurrent protection.
15	Certificate	CE Rohs UL
16	Protection	Normal IP54
17	Customize	Yes


Speed&Load&Current


Type	Load/Force	Noload Speed MM/SECOND	6V current MAX A	12V current MAX A
A	180N	5	0.76	0.38
B	128N	7	0.76	0.38
C	96N	9.5	0.76	0.38
D	64N	15	0.76	0.38
E	32N	30	0.76	0.38
F	19.2N	50	0.76	0.38
G	6.4N	150	0.76	0.38

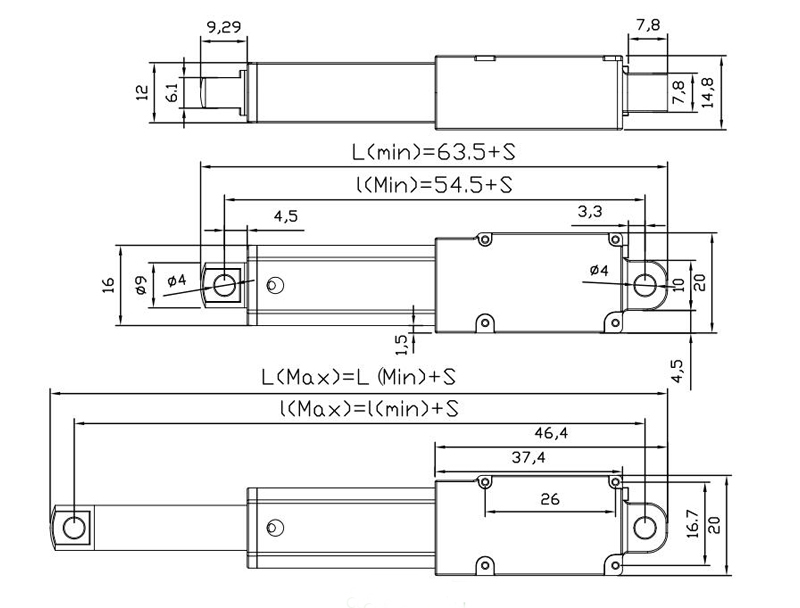

Drawing1.  Normal retracted length/From center of mounting holes
For example 100mm stroke  Lmin=63.5+Stroke=63.5+100=163.5mm
Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch,power automatic off and stop by itself.
2.  Stroke means the movement length of linear actuator.
3.  Normal extended length/From center of mounting holes
For example 100mm stroke   Lmax=Lmin+Stroke=163.5+100=263.5mm
Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch,power automatic off and stop by itself.
Built limited switch prevents over-retracting and over extending,safety.
