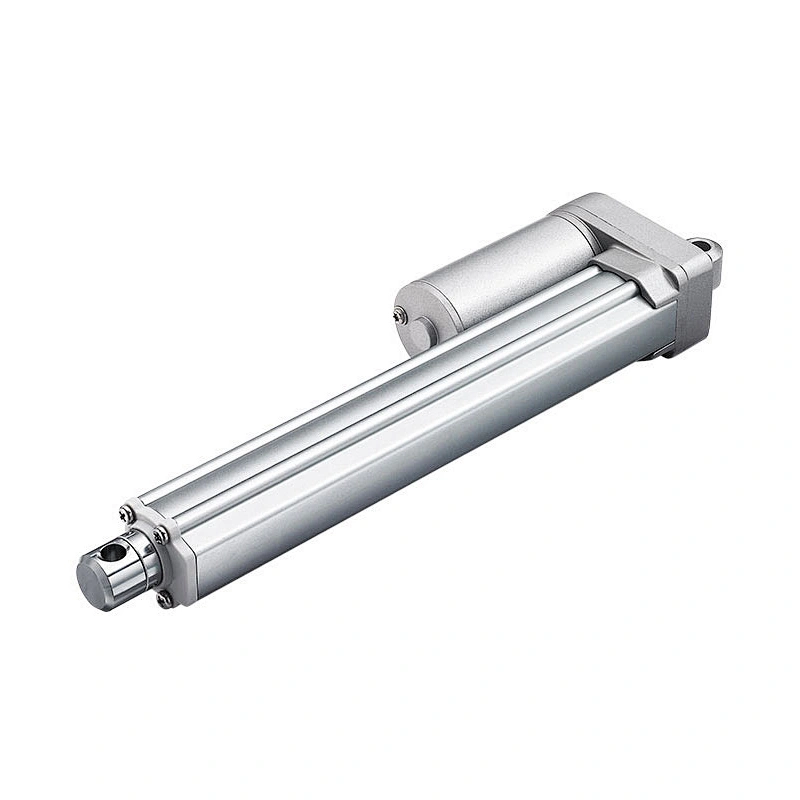

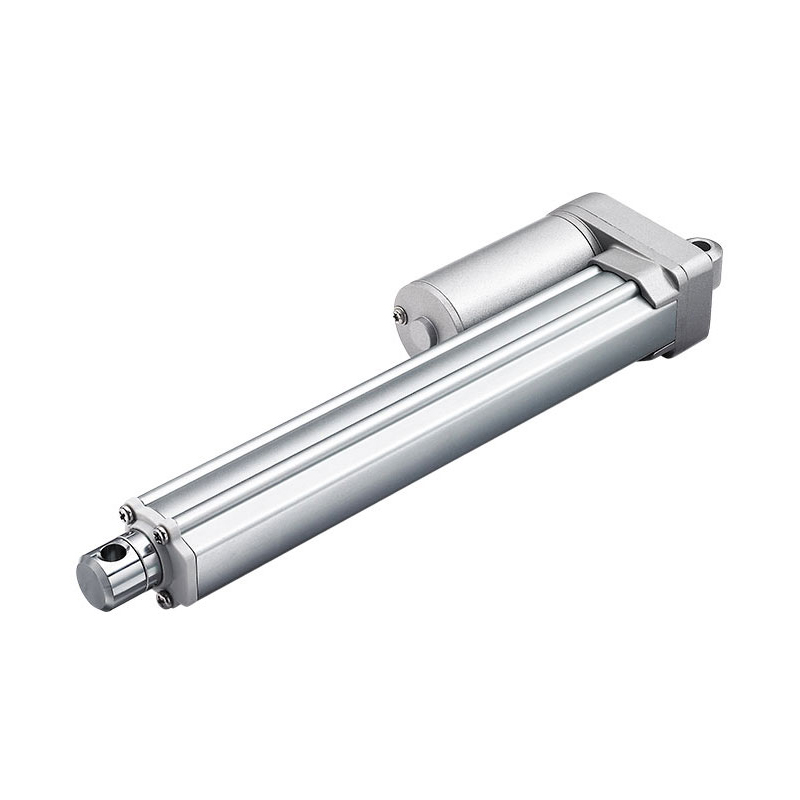

IP66,1200N,150MM/S,Potentiometer,Hall sensor,Encoder position feedback

Main Specification


1	Type	OK-LA02 Linear Actuator
2	Input	12/24V DC power
3	Load	Max 1200N/120KG/264LBS
4	Stroke	Max 1000MM/80INCH
5	Speed	Max 150MM/S 6INCH/S
6	Limited switch	Yes,with
7	Duty cycle	25%
8	Tube material	Aluminum alloy or stainless steel
9	Color option	Silver
10	Mounting bracket	Options
11	Control system	Options
12	Signal feedback	Hall sensor,Potentiometer,Encoder signal feedback,forward and reverse signal feedback
13	Manual	Manual function(it can work even no power)
14	Options	Both push/pull,only push,no pull. Overload,Overheat,Overcurrent protection.
15	Certificate	CE Rohs UL
16	Protection	Normal IP65
17	Customize	Yes


Speed&Load&Current


Type	Load/Force	Noload Speed MM/SECOND	12V current MAX A	24V current MAX A
A	1200N/120KG/264LBS	5.6	4.5	2.2
B	750N/75KG/150LBS	10	4.5	2.2
C	1200N/120KG/264LBS	15	4.6	2.3
D	500N/50KG/110LBS	17	4.6	2.3
E	450N/45KG/99LBS	20	4.6	2.3
F	300N/30KG/66LBS	30	4.6	2.3
G	400N/40KG/88LBS	40	4.6	2.3
H	300N/30KG/66LBS	50	4.6	2.3
I	200N/20KG/44LBS	65	4.6	2.3
J	100N/10KG/22LBS	100	4.6	2.3
K	50N/5KG/11LBS	150	4.6	2.3

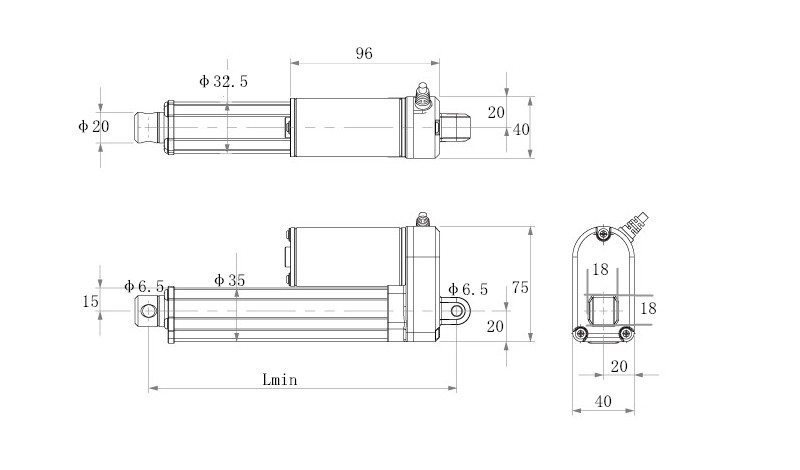

DrawingFor example 100mm stroke  Lmin=105+Stroke=105+100=205mm=8.2inch
Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch,power automatic off and stop by itself.
2.  Stroke means the movement length of linear actuator.
3.  Normal extended length/From center of mounting holes
For example 100mm stroke   Lmax=Lmin+Stroke=205+100=305mm=12.2inch
Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch,power automatic off and stop by itself.
Built limited switch prevents over-retracting and over extending,safety.
