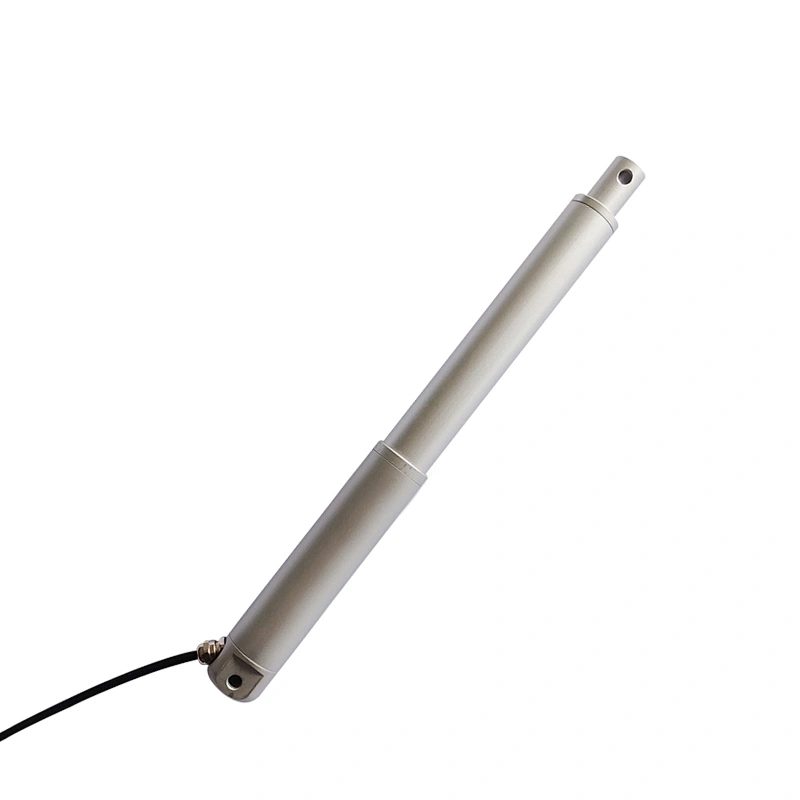

IP66 Max load 1800N,120MM/S,Hall sensor position feedback

Main Specification


1	Type	OK-LA30T Linear Actuator
2	Input	12/24V DC power
3	Load	Max 1800N/180KG/396LBS
4	Stroke	Max 1000MM/80INCH
5	Speed	Max 120MM/S 4.8INCH/S
6	Limited switch	Yes,with
7	Duty cycle	25%
8	Tube material	Aluminum alloy or stainless steel
9	Color option	Silver
10	Mounting bracket	Options
11	Control system	Options
12	Signal feedback	Hall sensor,Potentiometer,Encoder signal feedback,forward and reverse signal feedback
13	Current	12V 3A,24V 1.5A
14	Options	Both push/pull,only push,no pull. Overload,Overheat,Overcurrent protection.
15	Certificate	CE Rohs UL
16	Protection	Normal IP66
17	Customize	Yes


Speed&Load&Current


Type	Load/Force	Noload Speed MM/SECOND	12V current MAX A	24V current MAX A
A	1800N	3.5	3.0	1.5
B	1600N	5	3.0	1.5
C	1400N	7	3.0	1.5
D	1000N	10	3.0	1.5
E	600N	17	3.0	1.5
F	450N	24	3.0	1.5
G	250N	32	3.0	1.5
H	300N	48	3.0	1.5
I	150N	95	3.0	1.5
J	100N	120	3.0	1.5

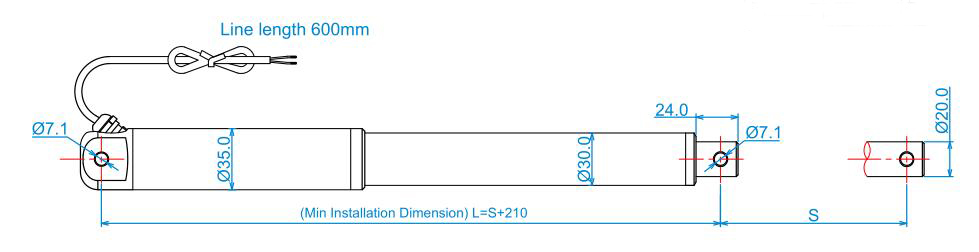

DrawingFor example 100mm stroke  Lmin=210+Stroke=210+100=310mm=12.4inch
Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch,power automatic off and stop by itself.
2.  Stroke means the movement length of linear actuator.
3.  Normal extended length/From center of mounting holes
For example 100mm stroke   Lmax=Lmin+Stroke=310+100=410mm=16.4inch
Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch,power automatic off and stop by itself.
Built limited switch prevents over-retracting and over extending,safety.
