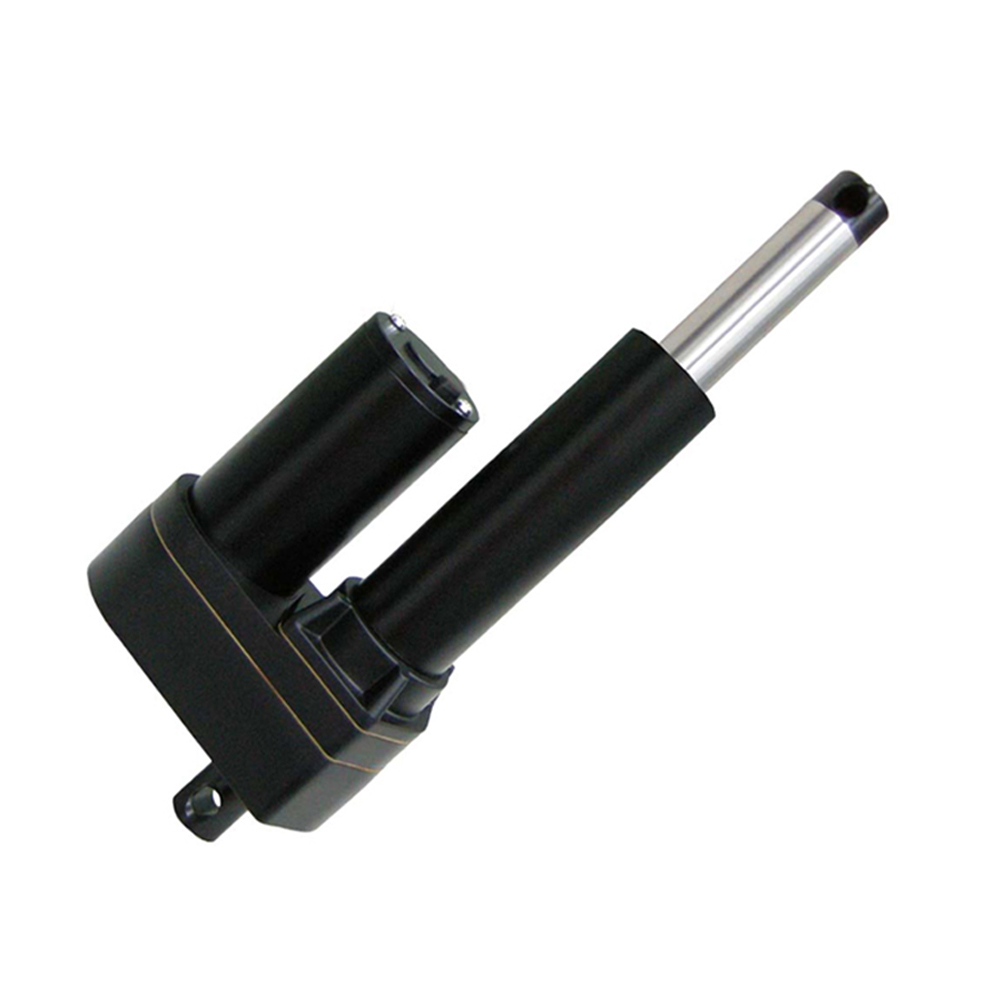

12000N,160MM/S,Potentiometer,Hall sensor,Encoder position feedback

Main Specification


1	Type	OK-LA23 Linear Actuator
2	Input	12/24V DC power
3	Load	Max 12000N/1200KG/2640LBS
4	Stroke	Max 1000MM/80INCH
5	Speed	Max 160MM/S 6.4INCH/S
6	Limited switch	Yes,with
7	Duty cycle	25%
8	Tube material	Aluminum alloy or stainless steel
9	Color option	Black
10	Mounting bracket	Options
11	Control system	Options
12	Signal feedback	Hall sensor,Potentiometer,Encoder signal feedback,forward and reverse signal feedback
13	Manual	Manual function(it can work even no power)
14	Options	Both push/pull,only push,no pull. Overload,Overheat,Overcurrent protection.
15	Certificate	CE Rohs UL
16	Protection	Normal IP65 IP66
17	Customize	Yes


Speed&Load&Current


Type	Load/Force	Noload Speed MM/SECOND	12V current MAX A	24V current MAX A
A	12000N/1200KG/2640LBS	4	20	10
B	10000N/10000KG/2200LBS	5	20	10
C	9000N/900KG/1980LBS	8.5	19	9.5
D	7000N/700KG/1540LBS	12	19	9.5
E	4000N/400KG/880LBS	15	19	9.5
F	3000N/300KG/660LBS	20	19	9.5
G	2000N/200KG/440LBS	40	20	10
H	2000N/200KG/440LBS	50	20	10
I	2000N/200KG/440LBS	65	18	9
J	1500N/150KG/370LBS	100	20	10
K	1000N/100KG/220LBS	160	20	10

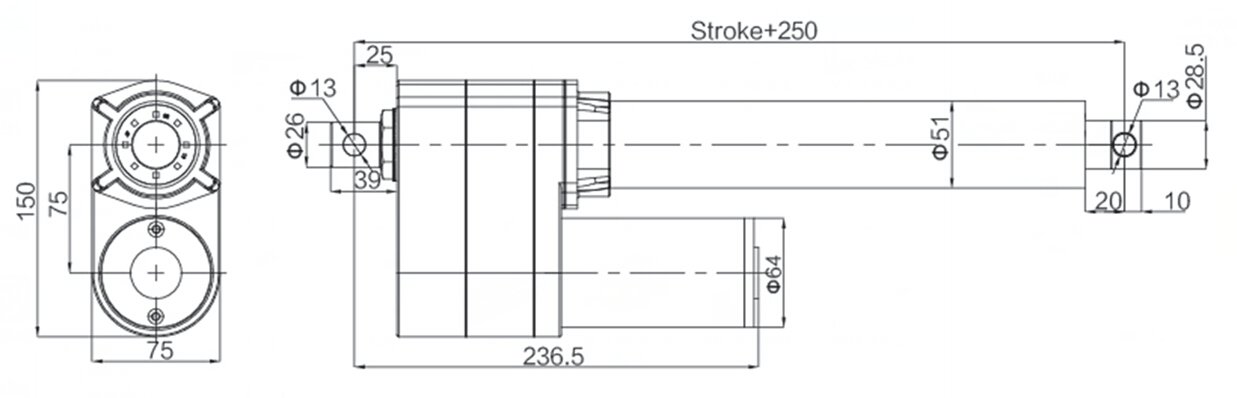

DrawingFor example 100mm stroke  Lmin=250+Stroke=250+100=350mm=14inch
Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch,power automatic off and stop by itself.
2.  Stroke means the movement length of linear actuator.
3.  Normal extended length/From center of mounting holes
For example 100mm stroke   Lmax=Lmin+Stroke=350+100=450mm=18inch
Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch,power automatic off and stop by itself.
Built limited switch prevents over-retracting and over extending,safety.
