Main Specification
Speed&Load&Current
Drawing

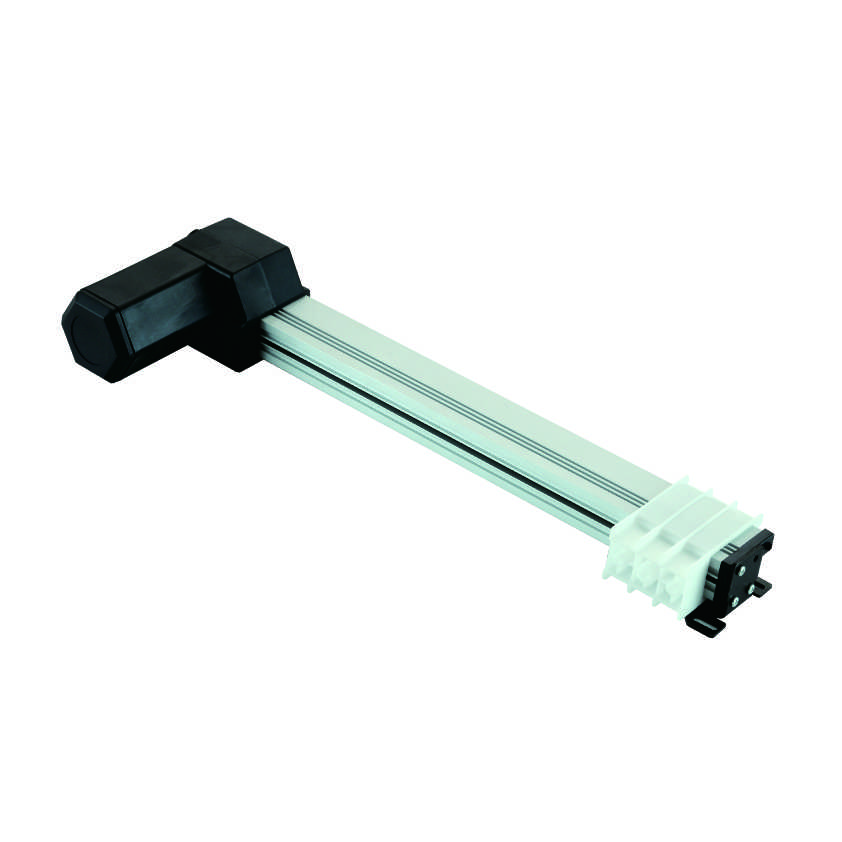

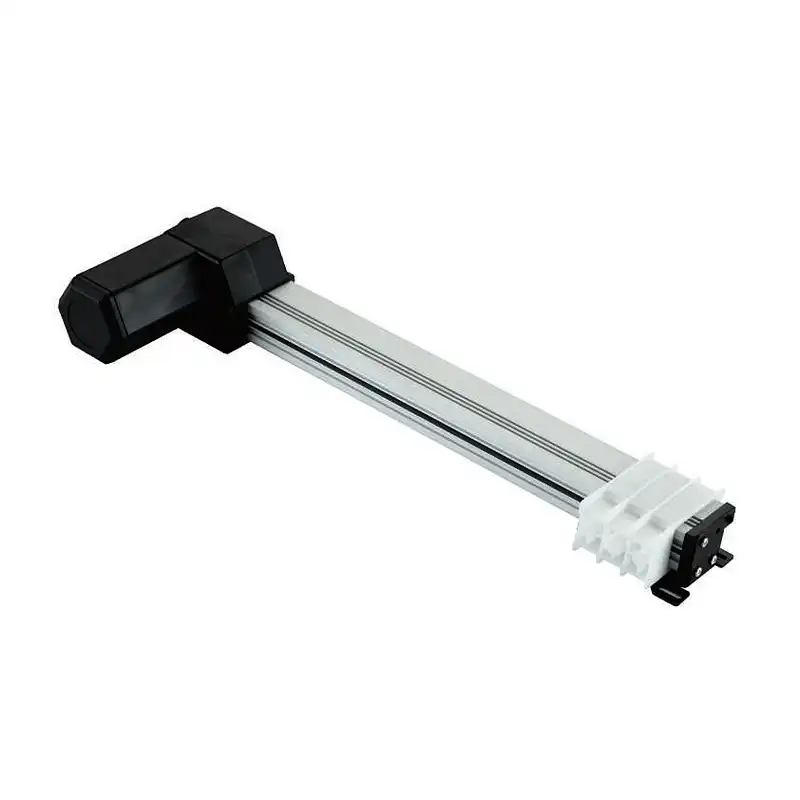

| 1 | Type | OK-LA22 Linear Actuator |
| 2 | Input | 12/24V DC power |
| 3 | Load | Max 6000N/600KG/1320LBS |
| 4 | Stroke | Max 1000MM/80INCH |
| 5 | Speed | Max 42MM/S 1.68INCH/S |
| 6 | Limited switch | Yes,with |
| 7 | Duty cycle | 10% |
| 8 | Tube material | Aluminum alloy or stainless steel |
| 9 | Color option | White/Black |
| 10 | Mounting bracket | Options |
| 11 | Control system | Options |
| 12 | Signal feedback | Hall sensor,Potentiometer,Encoder signal feedback,forward and reverse signal feedback |
| 13 | Manual | Manual function(it can work even no power) |
| 14 | Options | Both push/pull,only push,no pull. Overload,Overheat,Overcurrent protection. |
| 15 | Certificate | CE Rohs UL |
| 16 | Protection | Normal IP54 |
| 17 | Customize | Yes |
Speed&Load&Current
| Type | Load/Force | Noload Speed MM/SECOND | 12V current MAX A | 24V current MAX A |
| A | 6000N/600KG/1320LBS | 5 | 9 | 4.5 |
| B | 3000N/300KG/660LBS | 10 | 8.9 | 4.4 |
| C | 2000N/200KG/440LBS | 20 | 8.9 | 4.4 |
| D | 1200N/120KG/264LBS | 30 | 8.9 | 4.4 |
| E | 1000N/100KG/220LBS | 42 | 9 | 4.5 |

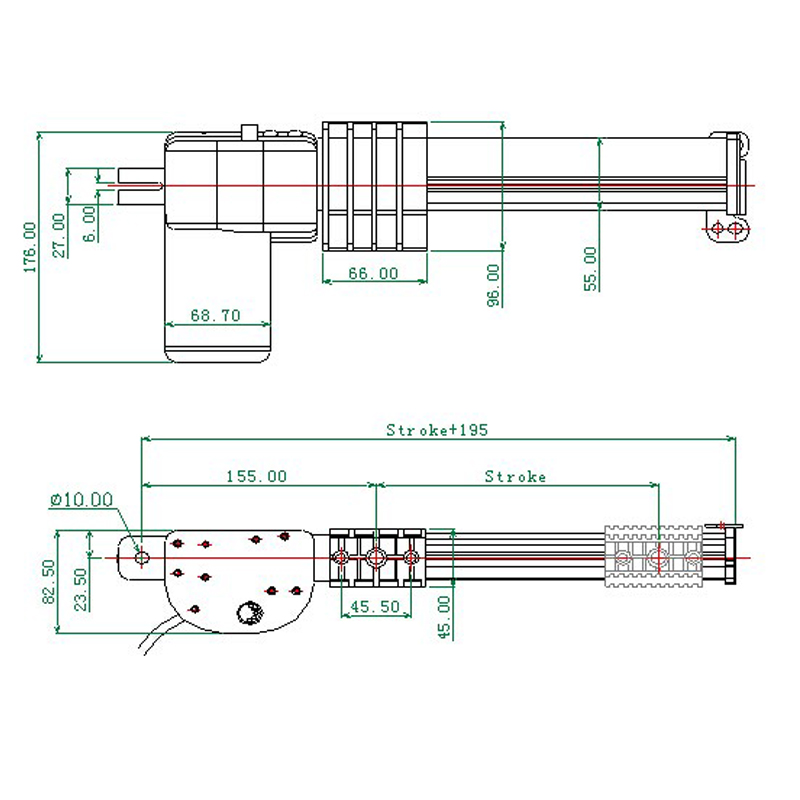

Drawing
