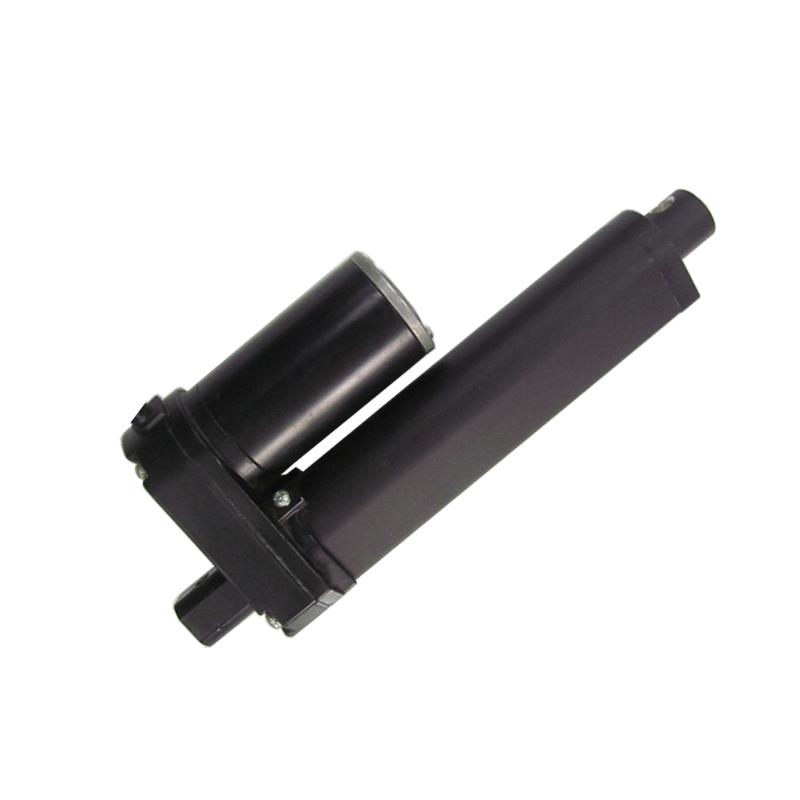

Max load 3500N,170MM/S,Potentiometer,Hall sensor,Encoder position feedback

Main Specification


1	Type	OK-LA05 Linear Actuator
2	Input	12/24V DC power
3	Load	Max 3500N/350KG/770LBS
4	Stroke	Max 1000MM/80INCH
5	Speed	Max 170MM/S 6.8INCH/S
6	Limited switch	Yes,with
7	Duty cycle	25%
8	Tube material	Aluminum alloy or stainless steel
9	Color option	Silver
10	Mounting bracket	Options
11	Control system	Options
12	Signal feedback	Hall sensor,Potentiometer,Encoder signal feedback,forward and reverse signal feedback
13	Manual	Manual function(it can work even no power)
14	Options	Both push/pull,only push,no pull. Overload,Overheat,Overcurrent protection.
15	Certificate	CE Rohs UL
16	Protection	Normal IP65
17	Customize	Yes


Speed&Load&Current


Type	Load/Force	Noload Speed MM/SECOND	12V current MAX A	24V current MAX A
A	3500N/350KG/770LBS	5	7.8	3.9
B	2500N/250KG/550LBS	10	7.8	3.9
C	1500N/150KG/330LBS	15	7.8	3.9
D	1000N/100KG/220LBS	20	7.6	3.8
E	750N/75KG/165LBS	25	7.6	3.8
F	500N/50KG/110LBS	30	7.6	3.8
G	400N/40KG/88LBS	45	7.8	3.9
H	200N/20KG/44LBS	70	7.8	3.9
I	100N/10KG/22LBS	110	7.8	3.9
J	50N/5KG/11LBS	170	7.8	3.9

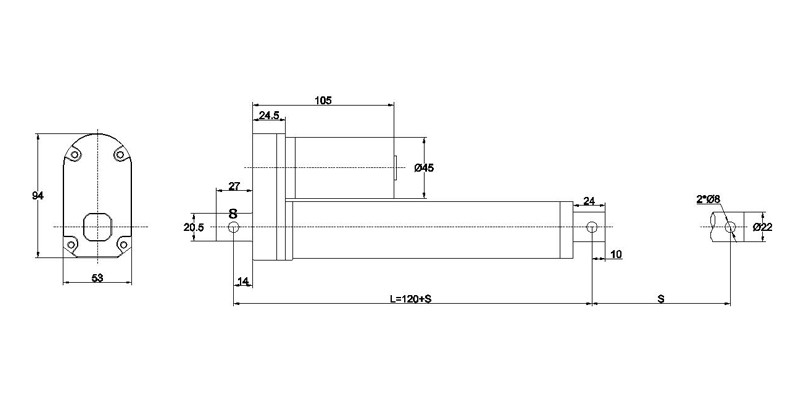

DrawingFor example 100mm stroke  Lmin=105+Stroke=120+100=220mm=8.8inch
Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch,power automatic off and stop by itself.
2.  Stroke means the movement length of linear actuator.
3.  Normal extended length/From center of mounting holes
For example 100mm stroke   Lmax=Lmin+Stroke=220+100=320mm=12.8inch
Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch,power automatic off and stop by itself.
Built limited switch prevents over-retracting and over extending,safety.
