Dynamic Load push(N) | 2000 |
| Off-center load capacity | max.1000 N at 400 mm lever arm length |
| Static Load*(N) | 2000 |
| Input(VDC) | 24 |
| Speed at Full Load (mm/s) | 10 |
| Stroke Length(mm) | 400 (option) |

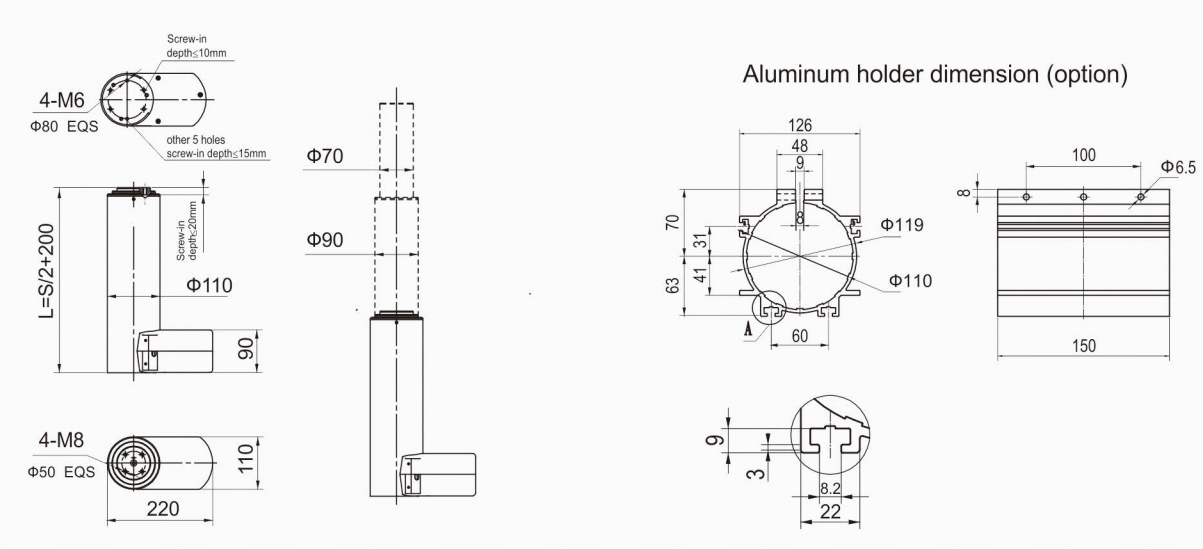

| Mounting | By screws on bottom plate or aluminum holder |
| Colour | Grey |
| Limit Switch | Build-in |
| Overload Protection | Yes |
| Limit Switch | 10%, max, 2min. continuous use |
| IP Grade | IP54 |
| Operation Temperature | +5℃~ +40℃ |
| Optional Feature | Hall sensor option |
| Standard | EN 60601, UL60601 |
