| Dynamic Load Push(N) | 6000 | 4000 | 2000 |
| Static Load Push*(N) | 6000 | 4000 | 2000 |
| Input(VDC) | 24 | ||
| Speed at Full Load(mm/s) | 3 | 4 | 7 |
| Input(VDC) | 12 | ||
| Speed at Full Load(mm/s) | 3 | 4 | 5 |
| Stroke Length(mm) | 100~400 (option >400) | ||
| Colour | Black or Grey | ||
| Mounting | By screws on the top and bottom plate | ||
| Overload Protection | Yes | ||
| Limit Switch | Build-in | ||
| Duty Cycle | 10%,max.2min. continuous use | ||
| IP Grade | IP43 | ||
| Operation Temperature | +5°C ~ +40°C | ||
| Optional Feature | Hall sensor option | ||
*The values apply when appropriate Our Control Box is used, which short-circuits the motor during stop.
Overload protection is set in our own control box

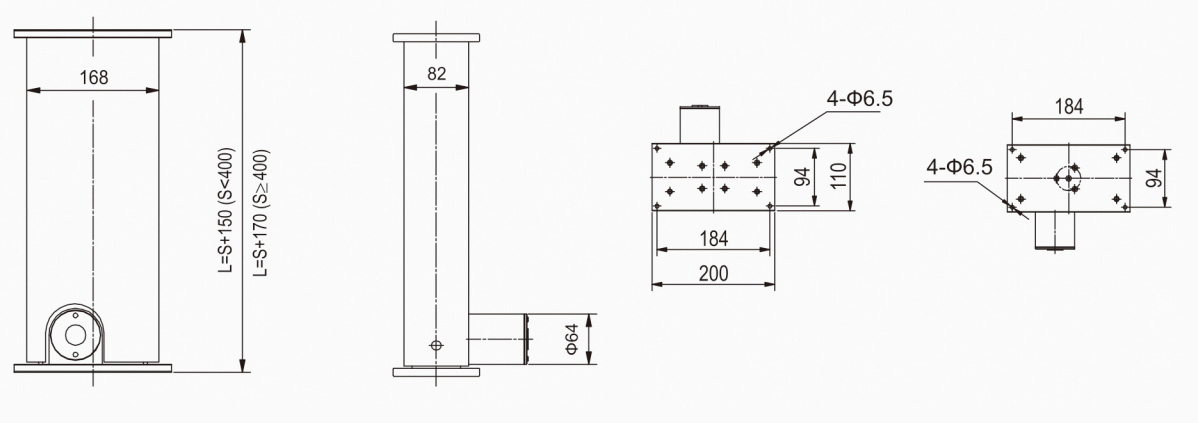

Dimension :
