Specification：
| Model No | OK-LC2 |
| Column stages | 2 stages |
| Safety | Anti-collision |
| Dynamic Load Push | 800N. |
| Dynamic Load Pull | 800N |
| Input | 110-220VAC @50～60Hz |
| Speed at full Load | 25mm/s |
| Height range | 660-1140mm |
| Stroke | 480mm |
| Frame Length range | 1000-1800mm |
| Color | White， Grey， Black or custom |
| Duty cycle | 10%,Max 2min/ 18min off |
| Overload protection | YES |
| Limited Switch | Built-in |
| Operation temperture | -5℃ ~ +40℃ |
| Option | LED & Memory handset and control box |
| Warranty | the motor is 2 years , the frame is 5 years |
| Certificate | CE，RoHS，SAA |

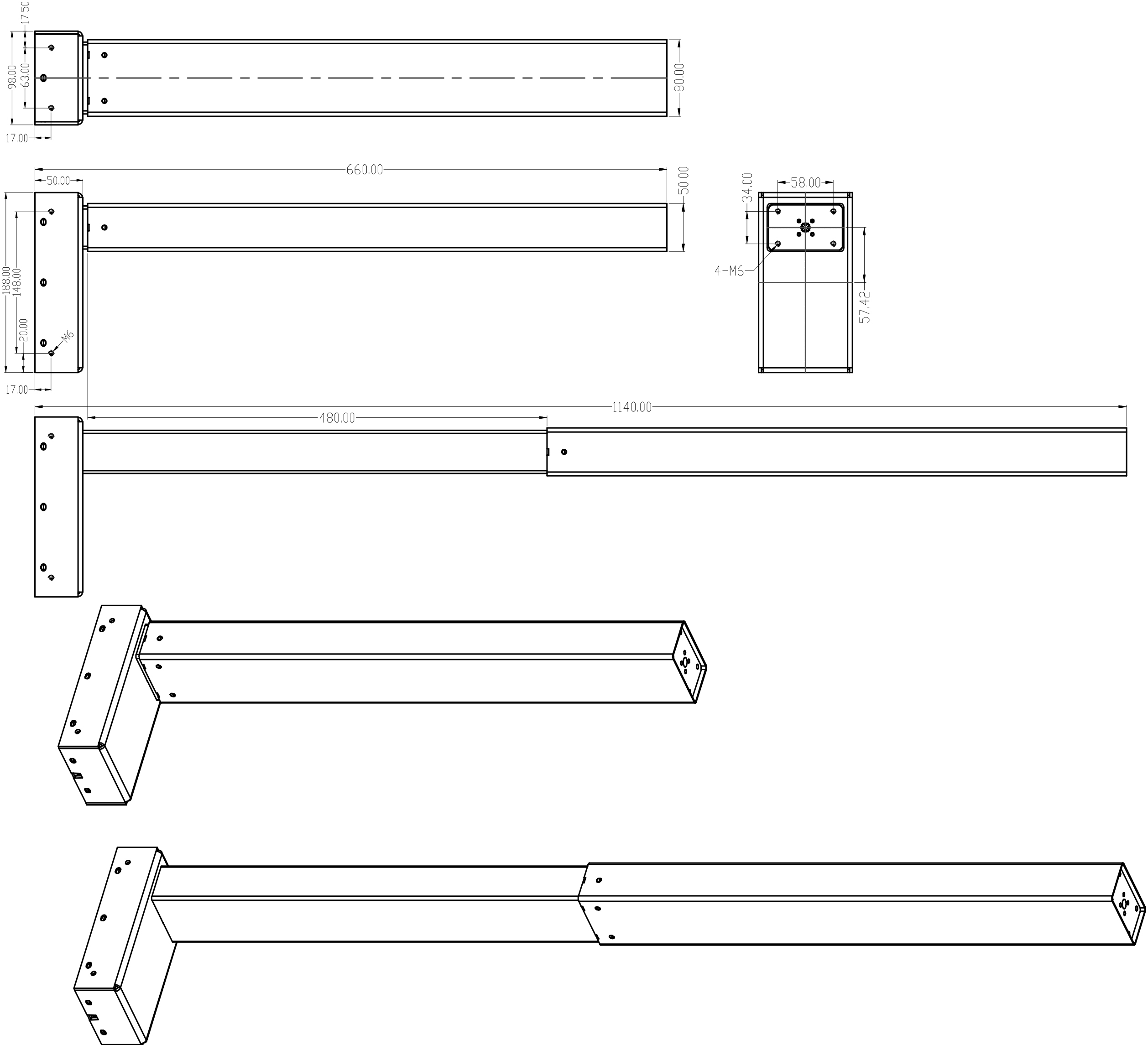

Dimension Drawing：
