1. Motor: 24VDC
2. Built-in dimension: 350mm(+/-4)
3. Stroke length: Max 400mm(+/-4)
4. Load in push: 2000N

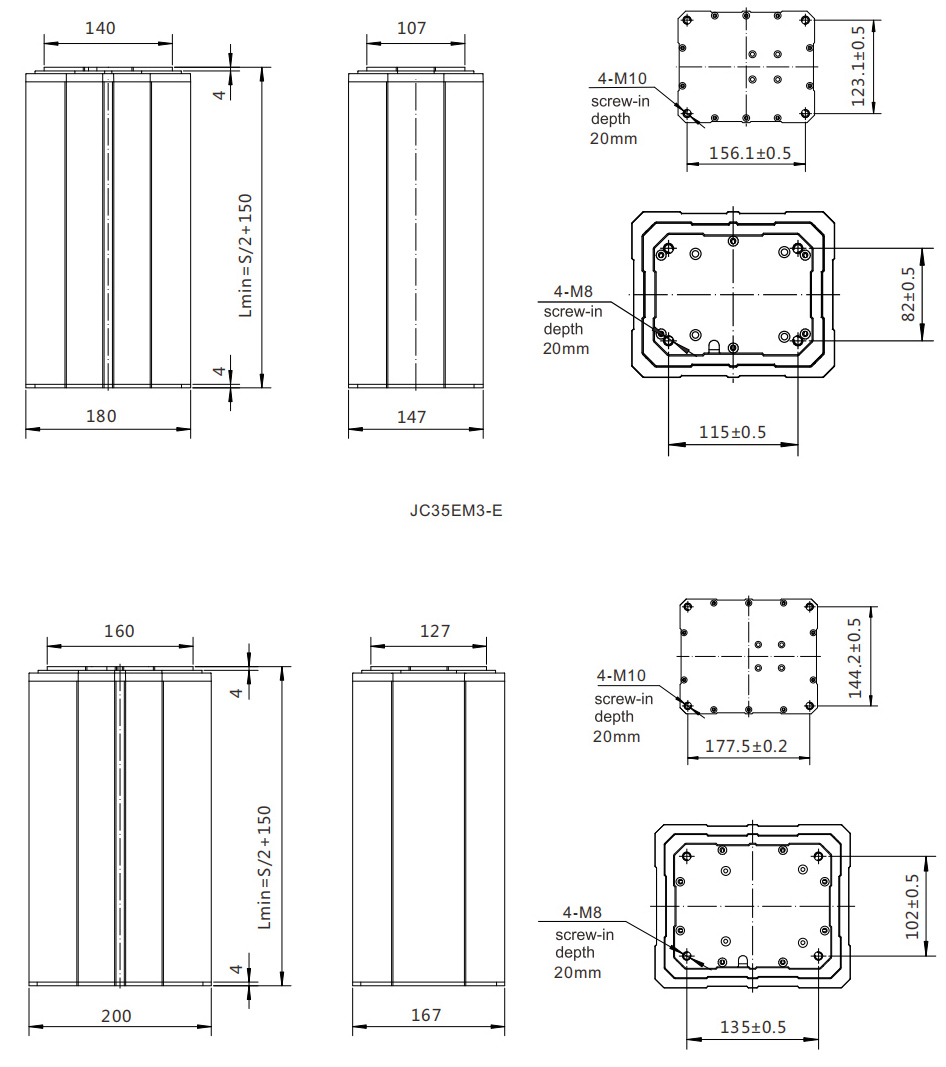

5. EM3 has three types: EM3-E(small)and EM3-F(large)
6. Static bending moment: 500
7. Dynamic bending moment: 250NM
8. Protection class: IP54
9. Colour:anodised aluminium
10. Built-in electrical limited switch-not adjustable
11. Noise level: 48dB
| Dynamic Load Push(N) | 2000 |
| Static Load Push *(N) | 2000 |
| Input(VDC) | 24 |
| Off-center load capacity | Max.1000N at 500mm lever arm length |
| Speed at Full Load(mm/s) | 10 |
| Stroke Length(mm) | 100~400 (option >400) |
| Colour | Sliver |
| Mounting | By screws on the top and bottom plate |
| Overload Protection | Yes |
| Limit Switch | Build-in |
| Duty Cycle | 10%,max.2min. continuous use |
| IP Grade | IP54 |
| Operation Temperature | +5℃~ +40℃ |
| Optional Feature | Hall sensor option |
| Standard | CE |
